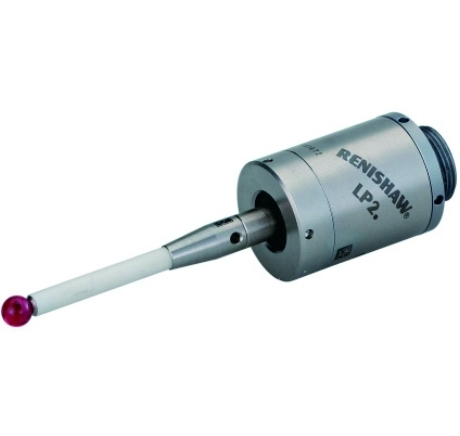

Renishaw LP2 Probe
The LP2 probe is used on CNC lathes for workpiece inspection and tool setting. It is also used in special applications where its small body makes it suitable for gaging workpiece features with restricted access.
The LP2 is universal and can be fitted to optical, inductive, hard-wired, and radio transmission systems. An array of sockets and adaptors is available to support these applications. Please contact RenishawProbe for further details.
| Sense directions | ±X, ±Y, ±Z |
| Stylus overtravel | X and Y: ±12.5° Z: 6.5 mm (0.25 in) |
| Stylus trigger force | X and Y: 50 gf - 90 gf Z: 585 gf |
| Unidirectional repeatability | 1.0 μm (0.00004 in) |
Includes:
- LP2 probe
- 2 C spanners
- TK1 tool kit
Renishaw part number: A-2063-6098
